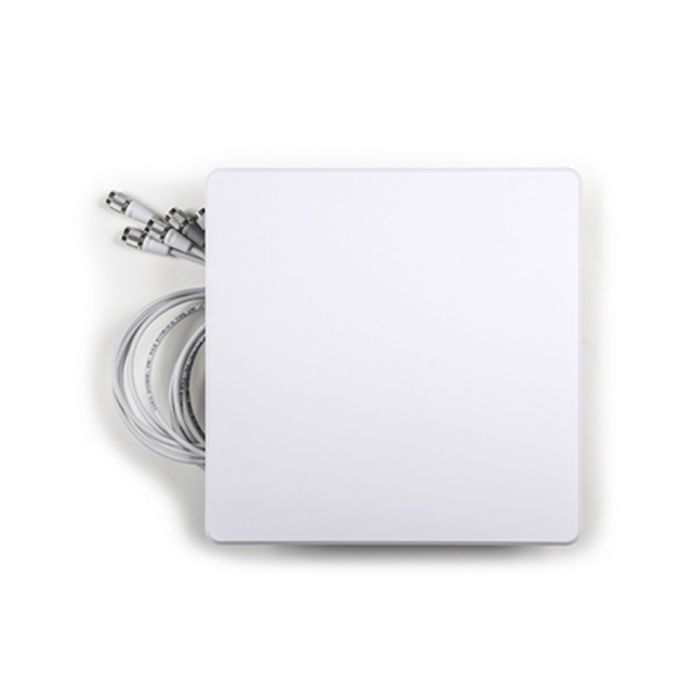

Meraki Antenna 6 Pack Wide Patch Antenna - (For: MR53E, MR42E)
The Wide Patch antenna is ideal for wall-mounted deployments, aesthetic consensus installations in low-density applications and wall-mounted or ceiling-mounted below 25 ft in high-density applications. Some example use cases are in vestibules with very high ceilings but few devices connecting and lecture halls where install is close to the users.
Technical Specifications
Electrical
- Antenna type: Wide Patch
- Frequency range: 2.400 – 2.500, 5.150 – 5.875 GHz
- Gain (per antenna element):E5: 7 dBi (2.4), 6.3 dBi (5)
- Gain (per antenna element):E6: 7 dBi (2.4), 6.3 dBi (5)
- Polarization: Linear, +/- 45°
- Half power beamwidth / horizontal: 60°/60°
- Half power beamwidth / vertical: 60°/60°
Cables
- AA-9303, 1M
Mounting
- Surface mount nut included; compatible with MA-MNT-ANT-1 or MA-MNT-ANT-2
- Mounts to walls and poles
Physical and Environmental
- Dimensions:(E5): 10.83” × 10.83” × 0.93” (275 mm × 275 mm × 23.5 mm)
- Dimensions:(E6):10.83” × 10.83” × 0.93” (275 mm × 275 mm × 23.5 mm)
- Weight: (E5): 38.8 oz (1.1 kg)
- Weight: (E6): 41.27 oz (1.17 kg)
- Material: PC-ABS
- Temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5% - 93%
- Connector: RP-TNC
Warranty
- 1 year hardware warranty included
Regulatory Information
- Certified for use with MR42E: MA-ANT-3-E5
- Certified for use with MR53E: MA-ANT-3-E6
| Manufacturer Part Number | MA-ANT-3-E6 |
|---|---|
| Condition | New |
| Manufacturer | Meraki |
| MSRP | 628.95 |
| Specifications | Wide Patch Antenna The Wide Patch antenna is ideal for wall-mounted deployments, aesthetic consensus installations in low density applications and wall mounted or ceiling mounted below 25 ft in high density applications. Some example use cases are in vestibules with very high ceilings but few devices connecting and lecture halls where install is close to the users. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Wide Patch antenna can be purchased with 5 or 6 connectors. |
