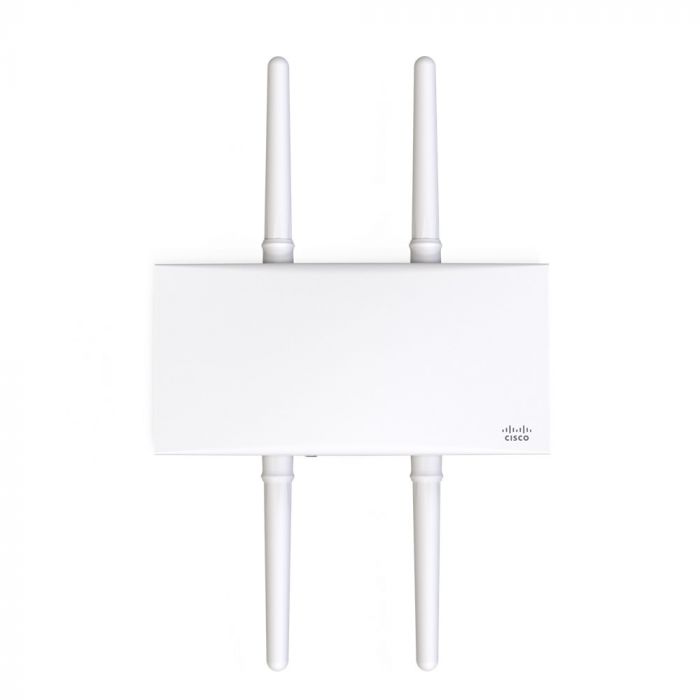

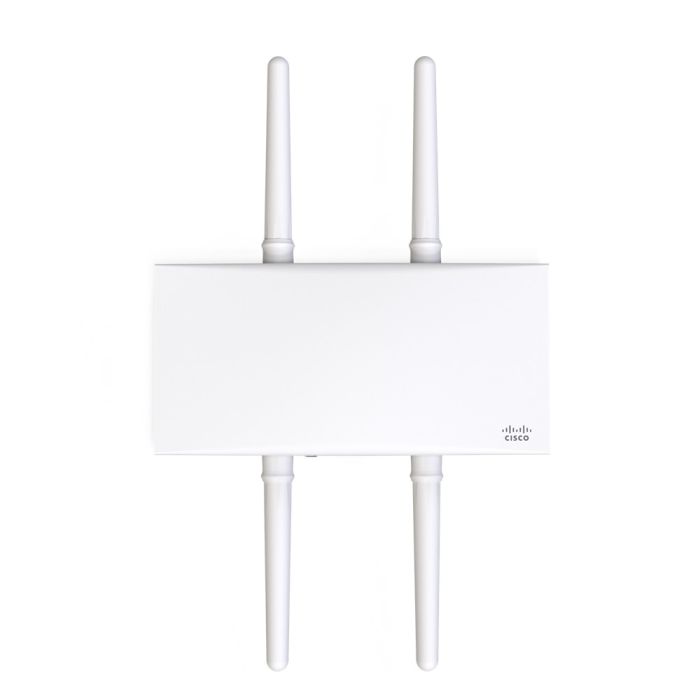

Meraki MR76 Wireless Access Point - Appliance Only (Antennas not included)
Special Price $783.37 Regular Price $2,081.88
Cisco Merki MR76 Outdoor and Industrial Wi-Fi 6 and Integrated, Dedicated Security and Bluetooth Radios.
Ideal use cases
- Harsh, industrial, and outdoor environments
- Voice, video, and performance-intensive networks
Hardware features
- IP67 rated: tested for dust, shock, vibration, and moisture
- 4 radios: 2.4 GHz, 5 GHz, dual-band WIDS/WIPS, and Bluetooth BLE
- 2-stream UL/DL MU-MIMO 802.11ax up to 1.7 Gbps dual aggregate frame rate
- Gigabit Ethernet port, 802.3af PoE compatible
Cloud management
- Network-wide visibility and control
- Self-provisioning for rapid deployment
- Automatic reporting
- Seamless firmware updates
Enterprise security
- 802.1X and native Active Directory integration
- Air Marshal: real-time WIPS with forensics
- Stateful Layer 3-7 firewall
- Identity-based group policies
- Built-in antivirus scan (NAC)
- Built-in Umbrella DNS Security*
- Adaptive Policy automated segmentation**
Guest access
- 1-click secure guest access
- Guest isolation firewall
- Customizable splash pages
- Integrated Facebook WiFi login
RF optimization
- Cloud-based RF planning
- Built-in spectrum analysis
- Dual-concurrent radios with band steering
Traffic Analytics
- Classifies hundreds of applications
- Create per-application and per-device bandwidth limits
- Prioritize productivity apps
- Restrict recreational traffic
Location Analytics
- Measure visitor capture rate, visit length, and repeat visit rate
- Measure visitor trends over time and compare performance across locations
- Enable location services through integrated iBeacon functionality
Device management
- Create device-specific firewall rules
- Deploy applications and updates
- Troubleshoot issues with built-in RDP
Mesh
- Self-configuring, self-optimizing mesh
- High performance multi-radio routing protocols
- Extends coverage to hard-to-wire areas
- Self-heals after cable or switch failures
More Information | Manufacturer Part Number | MR76-HW |
|---|
| Condition | New |
|---|
| Manufacturer | Meraki |
|---|
| MSRP | 1,559.00 |
|---|
| Specifications |
- Radios
- 2.4 GHz 802.11b/g/n/ax client access radio
- 5 GHz 802.11a/n/ac/ax client access radio
- 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
- 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
- Max data rate 1.7 Gbit/s
- Operating Bands (country-specific restrictions apply)
-
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHZ (UNII-2)
- 5.470-5.600 GHz, 5.650-5.725 GHz (UNII-2e)
- 5.725-5.825 GHz (UNII-3)
- 802.11ax, 802.11ac Wave 2, and 802.11n Capabilities
- UL/DL OFDMA, TWT support, BSS coloring
- 2×2 multiple input, multiple output (MIMO) with 2 spatial streams
- UL/DL SU-MIMO and MU-MIMO Support
- Maximal ratio combining (MRC)
- Beamforming
- 20, 40, and 80 MHz (802.11ac), 20 and 40 MHz channels (802.11n)
- 160 MHz (80+80); 20, 40 and 80MHz channels (802.11ax), 160 MHz (80+80)
- Up to 1024 QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
- Cyclic shift diversity (CSD) support
- Power
- Power over Ethernet: 37 - 57 V (802.3af compatible)
- Power consumption: 15 W max
- Power over Ethernet injector sold separately
- Mounting
- Mounts to walls and horizontal, vertical, and angled poles
- Mounting hardware included
- Physical Security
- Security screw included
- Anti-tamper cable bay
- Concealed mount plate
- Environment
- Operating temperature: -40°F to 131°F (-40°C to 55°C)
- IP67 environmental rating (sealed against water and dust)
- Physical Dimensions
- 11.81” x 6.02” x 2.16” (30.0 cm X 15.3 cm X 5.5 cm), not including cable gland, mounts and antennas
- Weight: 47.27 oz (1.34 kg)
- Interfaces
- One 100/1000 Mbps auto-crossover Ethernet port
- Four external N-type connectors (note: antennas sold separately)
- 1 power/booting/firmware upgrade status
- Security
- Integrated Layer 7 firewall with mobile device policy management
- Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
- Flexible guest access with device isolation
- WEP**, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)**
- EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
- PCI compliance reporting
- TKIP and AES encryption
- Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
- Cisco ISE integration for Guest access and BYOD Posturing
- Quality of Service
- Advanced Power Save (U-APSD)
- WMM Access Categories with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
- Mobility
- PMK, OKC, & 802.11r for fast Layer 2 roaming
- 802.11r and 802.11k
- Distributed or centralized layer 3 roaming
- LED Indicators
- 4 signal strength
- 1 Ethernet connectivity
- 1 power/booting/firmware upgrade status
- Regulatory
- Warranty
- 1 year hardware warranty with advanced replacement included
- Ordering Information
- MR74-HW Meraki MR76 Cloud Managed 802.11ax AP
- MA-PWR-30W-XX Meraki AC Adapter for MR Series (XX = US/EU/UK/AU)
- MA-INJ-5-XX Meraki Multigigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
- MA-ANT-20 Meraki Dual-Band Omni Antennas
- MA-ANT-21 Meraki 5 GHz Sector Antenna
- MA-ANT-23 Meraki 2.4 GHz Sector Antenna
- MA-ANT-25 Meraki Dual-Band Sector Antenna
- MA-ANT-27 Meraki Dual-Band Sector Antenna
- AIR-ANT2513P4M-N Dual-band, 4-port, 30° beam
- Note: Meraki access point license required. For AIR-ANT2513P4M-N= antenna, contact Cisco directly
|
|---|
| Warranty | Click Here for Meraki Warranty Periods, Return Policy and Requesting a RMA |
|---|
